Single Head Electric Staplers

Staplex® SJM-1N Little Giant Automatic Electric Stapler

Now with "pop-out" loading - International Best Seller!

• SJM-1N staples automatically when work is inserted!
• Staple 2-20 sheets of 20-lb. paper, header cards and more!
• "Hi-Low" switch for selecting stapling power
• Fully adjustable depth to 3"
• Quick "pop-out" front loading with full track of standard size ¼" staples Staplex® Type DS High Speed Staples
• All metal components and modular design
• Power-packed to do full day work loads
• Also available - SJM-1NF Foot Switch activated and SJM-1NC Finger Trip activated [3-3/8" reach]
• Made in U.S.A.

Uses Staplex Type DS 1/4" leg High Speed Staples. Weighs only 6¾-lbs., is only 4" wide, 7‑½" deep and 7" high.

Models:

Model SJM-1N: Little Giant Automatic Electric Stapler - 110-125 volts, 50-60 Hz AC (best seller!)

Model SJM-1NF: Foot Switch Operated Little Giant - 110-125 volts, 50-60 Hz AC

Model SJM-1NC: Finger Trip Little Giant - 110-125 volts, 50-60 Hz AC

Staples:

Staplex Type DS High Speed Staples 1/4" leg 5,000 per box



---



Staplex® S-54N Standard Model Automatic Electric Stapler

Now with "pop-out" front loading

• Great for long run, continuous stapling!
• Staples 2-25 sheets of 20-lb. paper or equivalent
• Adjustable depth to 3-5/8" , 3-3/4" for footswitch models]
• Uses Staplex Type DS ¼" High Speed Staples
• Fast, neat, quiet, dependable!
• Rubber suction feet hold firm to surface
• Made in U.S.A.

Weighs only 13-lbs., is 4" wide , 9‑½" deep and 9‑½" high

Models:

Model S-54N: Standard Model Automatic Electric Stapler - 110-125 volts, 50-60 Hz AC

Model S-54NF: Foot Switch Operated Standard Model - 110-125 volts, 50-60 Hz AC

Staples:

Staplex Type DS High Speed Staples 1/4" leg 5,000 per box



---



Staplex® S-54NHL Dual Capacity Automatic Electric Stapler

Now with "pop-out" front loading

• Ideal for both light and heavy capacity stapling
• "Hi-Low" switch to adjust stapling impact delivers the right stapling power every time ¾ like having two staplers in one!
• Staples up to 40 sheets of 20-lb. paper or equivalent
• Uses standard size Type DS and Long Leg Type LL High Speed Staples
• Adjustable depth to 3-5/8", 3-3/4" for footswitch models]
• Made in U.S.A.

Weighs 11‑¼ lbs., Dimensions: 4" wide, 9‑½" deep, 10" high

Models:

Model S-54NHL: Dual Capacity Automatic Electric Stapler-110-125, 50-60 volts Hz AC

Model S-54NHLF: Foot Switch Operated Dual Capacity Model - 110-125 volts, 50-60 Hz AC

Staples:

Staplex Type DS High Speed Staples 1/4" leg (for 2-20 sheets 20-lb. [75 g/m2] paper or equivalent) 5,000 per box

Staplex Type LL Long Leg High Speed Staples (for 16-40 sheets 20-lb. [75 g/m2] paper or equivalent) 5,000 per box

Staplex® S-RDN Thick Wire Automatic Electric Stapler

Now with "pop-out" front loading

• Model S-RDN is designed for automatically stapling padded shipping bags and thick "clam shells"
• Powerful solenoid system and thick wire staples assure positive tight clinch!
• Packages stay closed during rough handling - prevents loss and pilferage
• Great for heavy chipboard or kraft stock, "clam shell" blister packages
• Adjustable depth to

  3-3/8", 3-7/8" for footswitch models]

• "Hi-Low" switch adjusts stapling impact
• Fast!!! Cuts packing and shipping costs sharply; eliminates fatigued hands
• Quick front loading with Staplex Type RLD Long Leg Thick Wire High Speed Staples
• Made in U.S.A.

Weighs 11‑¼ lbs., Dimensions: 4" wide, 9‑½" deep, 10" high

Models:

Model S-RDN: Thick Wire Automatic Electric Stapler - 110-125 volts, 50-60 Hz AC

Model S-RDNF: Foot Switch Operated Thick Wire Model - 110-125 volts

Staples:

Staplex Type RLD Thick Wire Long Leg High Speed Staples 5,000 per box



---



 Staplex® SU-100N ULTRA Heavy Capacity Electric Stapler

• Staple up to 100 sheets of 20-lb. paper or equivalent at the tap of the footswitch!
• Re-loads in seconds with 4 sizes of staples - 1/4", 3/8", 1/2", and 5/8"
• "Hi-Low" switch to adjust stapling impact delivers the right stapling power every job
• Portable, no mounting, sets on desk, table, bench
• Direct-drive solenoid for tight, positive clinch
• Dual adjustable locking backstop to 4 inches depth for super neat stapling!
• Jam-proof all steel staple mechanism
• Staple paper, corrugated, plastic, cardboard, cloth and more!
• Made in U.S.A.

Uses Staplex Type HO-1/4, HO-3/8, HO-1/2 and HO-5/8 High Speed Staples. (See below for capacities.)

Completely portable. No mounting required.

Notes: Right leg of staple should be minimum of 1.25" from right edge of material to activate safety microswitch attached to the adjustable locking backstop on the right side of the stapling head.

Optional left side contact safety microswitch available on special order (to allow positioning right leg of staple closer than 1.25" from the right edge of material.)

Weighs 22 lbs. (10 kg) Dimensions: 10‑½" wide, 10‑¼" deep, 10" high.

Staplex High Speed Staples for Model SU-100 (1,000 per box):

Type HO-1/4 1/4" High Speed Staples (up to 20 sheets)

Type HO-3/8 3/8" High Speed Staples (20 to 50 sheets)

Type HO-1/2 1/2" High Speed Staples (50 to 80 sheets)

Type HO-5/8 5/8" High Speed Staples (80 to 100 sheets)

For stapling beyond 100 sheets of 20-lb. paper or equivalent, see our Staplex® Heavy Capacity Manual Staplers





---

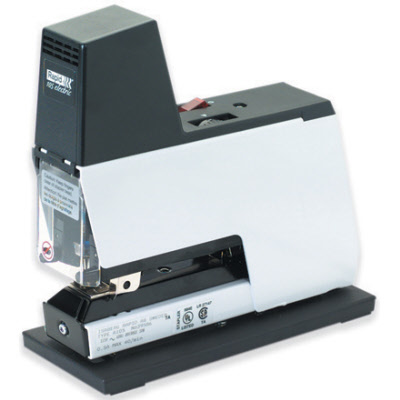

R105E

A thin electric stapler for office and packaging stapling. Two or more staplers can be connected in series with fibre optic cable for stapling simultaneously. The staplers are sequentially controlled and therefore do not overload the mains. Patented electronic controlling, pneumatic damping etc gives agreeable and quiet sequence of operation. 105E has a steplessy adjustable force and the stapling depth is also adjustable. The stapling is automatic or with a pedal.









Features:

• Adjustable power setting
• 3.8" adjustable throat depth
• Bump switch or foot pedal activation
• Safety shield
• Optional foot pedal
• Optional table clamp
• Optional adjustable stand (must have a table clamp to use adjustable stand)
• 4 rubber feet
• Spring loaded base to absorb the impact of stapling
• Interchangeable 66 series and 44 series stapling heads
• Adjustable anvil allows for outward clinch capabilities

Applications:

• 2 to 50 sheets of 20 lb copy paper
• Header cards (3.8" max depth)
• Blister packs
• Clam shell packaging
• Mailing and shipping envelopes
• Paper bags
• Trays
• Pinning layers of fabric together

The R105E allows the user the versatility of switching the stapling head from its standard 66 series to a heavier 44 series; by changing the stapling head the tool is able to staple through denser materials than an "average office stapler".

The 66 series unit takes a staple that is a thin, flat wire designed for graphics use. If your application is stapling paper (preferably 20 lb copy paper, 50 sheets maximum) the 66 standard series would work best for you.

The 44 series unit's staple is thicker; a staple designed for header cards, card stock, corrugated cardboard, blister packaging and clamshell packaging. As always, we suggest you send in a sample of your specialty application before placing an order so we may recommend the correct stapler for your application.
