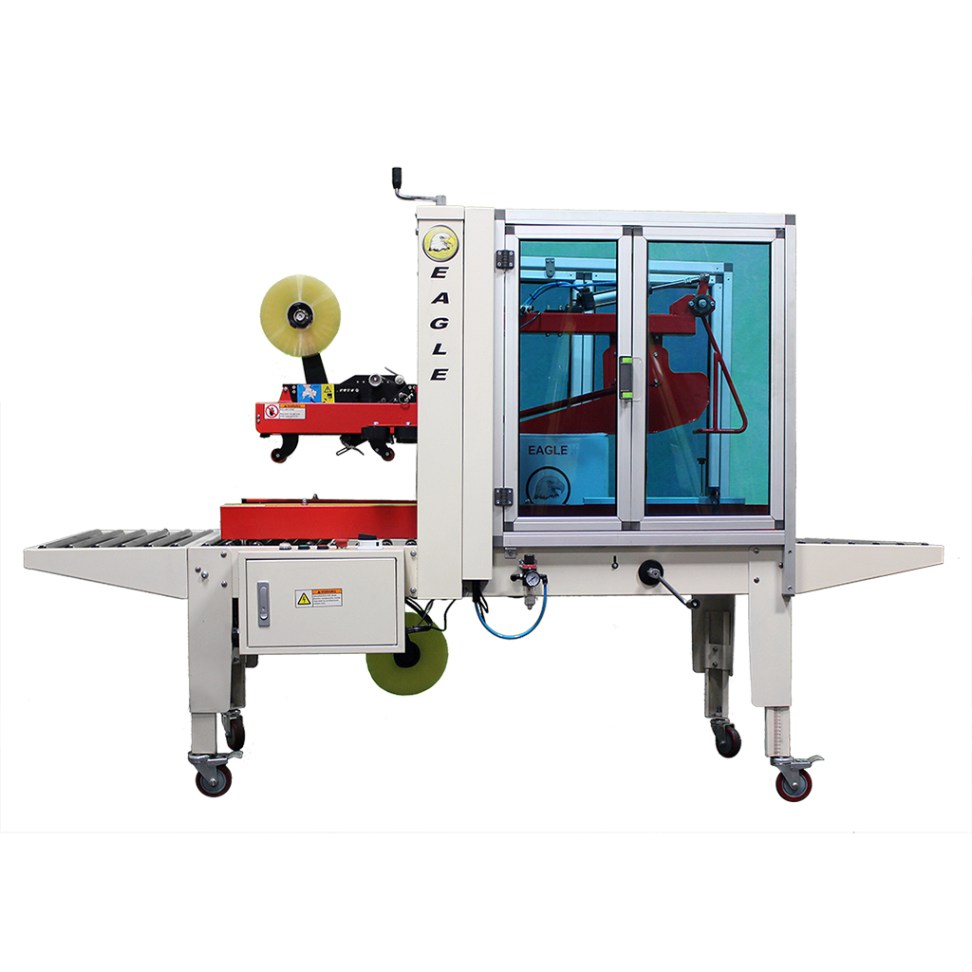

Eagle T500 Fully Automatic Carton Taper with 3 Flap Folder
Product Number: Eagle T500
SKU: Eagle T500
$7,850.00
In Stock
QTY:
EAGLE T500
- Uniform Carton Sizes
- Side Belt Drive
- Automatic Upper Flap Closer
The Eagle T500 makes it possible for the operator to seal different sized cartons with minimal adjustments required.
- Uniform in-line carton sealing system
- Folds and seals top carton flaps
- Can be conveyer or operator fed
- Automatically Folds Top Flaps
- Side Drive Belts
- Locking Casters
- Top Squeezers
- Dual Mast
- Top & Bottom Tape Heads
- Extension Roller Tables
- Safety Switches on Side Guards
Additional information
| Power |
110VAC/single phase |
|---|---|
| Air Consumption |
1 cfm @ 80 psi |
| Carton Size |
Length: 6" to infinity, Width: 6.75" to 18.9", Height: 4.5" to 17.7" |
| Working Speed |
12 to 16 cartons/min. |
| Tape Material |
BOPP |
| Tape Size |
2" or 3" |
| Machine Dimensions |
65.5” x 36.6” x 53” |
| Machine Weight |
800 lbs. |
| Working Height |
Min: 17.5”, Max: 27.75” |
