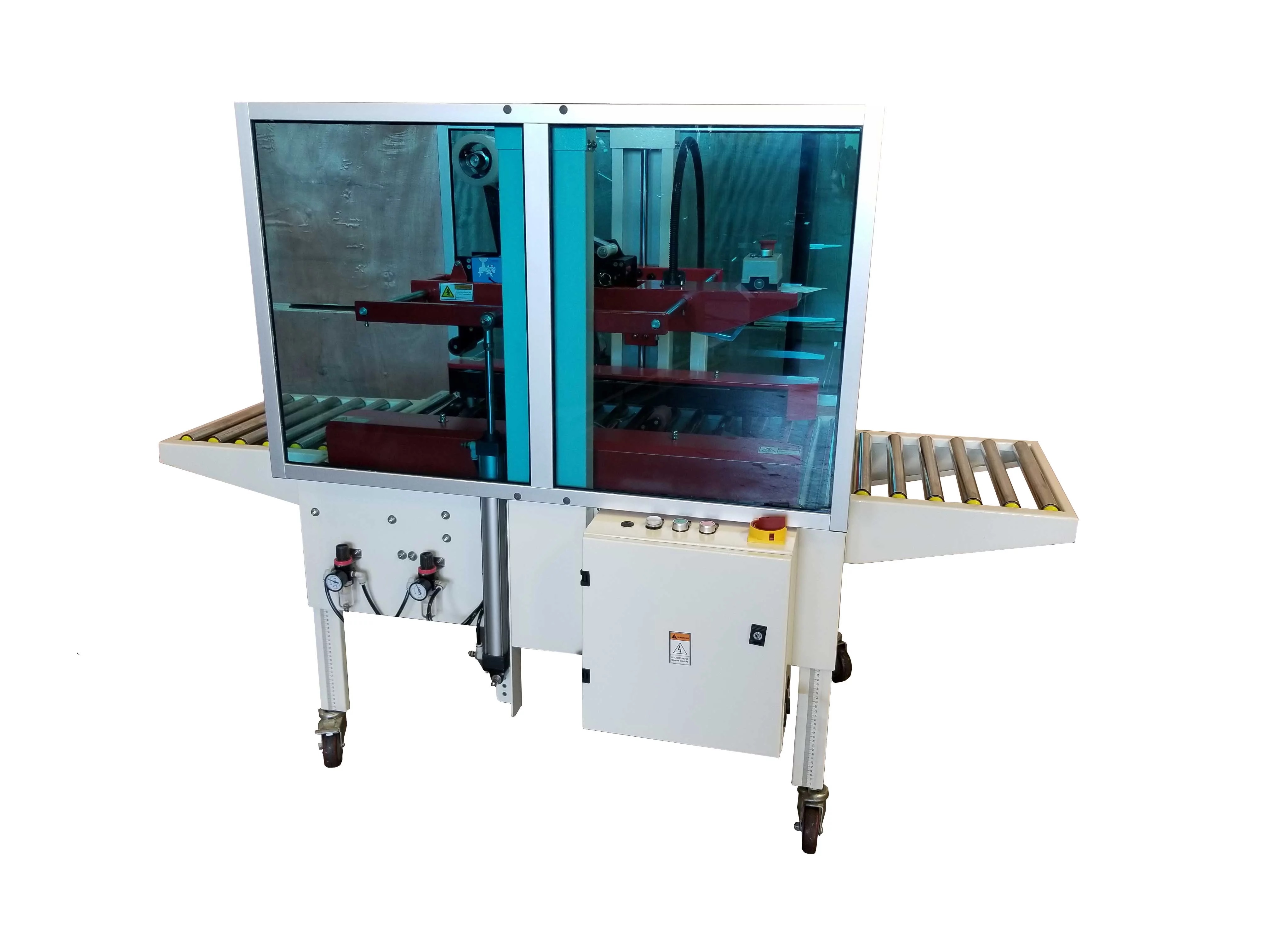

Eagle T100R Side Belt Random Size Carton Taper

Product Number: T100R
SKU: T100R
$5,500.00
In Stock
QTY:



PLEASE NOTE THAT MACHINE PREP AND CRATING CAN TAKE UP TO 4 WEEKS. PLEASE CONTACT US FOR LEAD TIME.

Description

The Eagle T100R automatically adjusts to tape the top and bottom of any size carton.

The side belt drives ensure proper carton sealing even with cartons that are short in height, but have an extended length.

Features

  • Side drive belts
  • Locking casters
  • Top squeezers
  • Dual mast
  • Top and bottom tape heads
  • Extension roller tables
  • Automatically adjusts to carton size

Available Options

  • High-speed motors
  • Roller conveyer
  • Extended working height
  • Indexer
  • Hold-down attachment
  • Low tape sensor
  • Broken tape sensor

Additional information

Power

110VAC, 60Hz, Single Phase

Carton Size

Length: 6" to ∞
Width: 4.875" to 19.375"
Height: 5" to 20.625"

Working Speed

Up to 30 Cartons per minute

Tape Material

BOPP

Tape Size

2" or 3"

Machine Dimensions

29.875" × 45.5" × 54.125"

Machine Weight

544lbs

Working Height

17.5" to 27.75"

Optional

Available in Stainless Steel

Warranty

One year warranty on parts
